Hanoi - Bac giang Industrial park II JSC.
Infrastructure

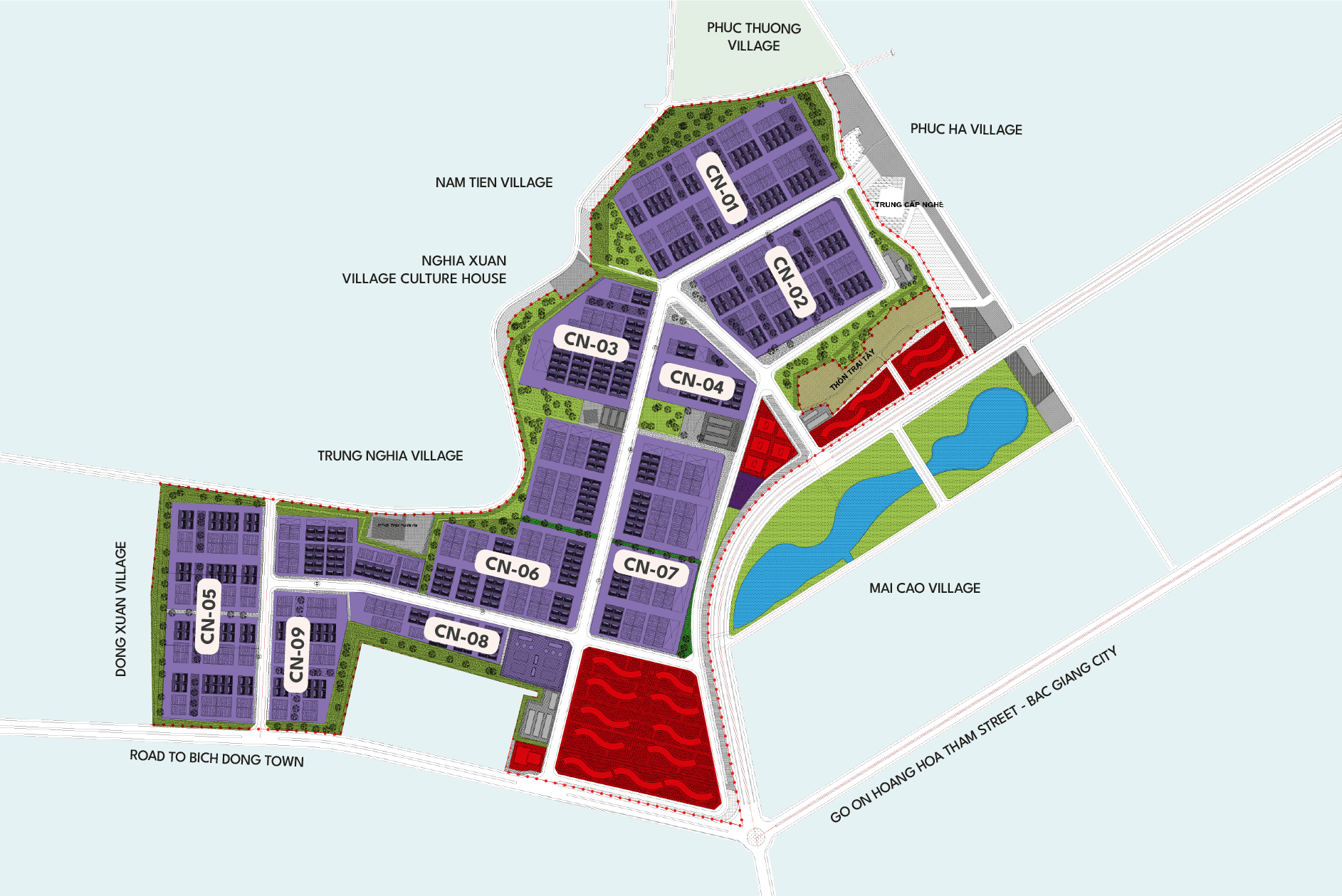

Master Plan
Administrative Service Area
Technology zone
Industrial park
Parking area
Water surface area
Green area
Existing residential area
Cemetery area
Planning boundary
6m technical corridor
Power source
110kV Da Mai substation with a capacity of 2×40MVA.
110kV substation located in the industrial park with a capacity of 2×40MVA.
Implement a solar power system in certain areas of the industrial park to enhance efficiency.
Utilizing the currently operating 22kV power line within the area.
Water supply and fire protection system
Connect to the existing D300 water pipeline from the Bac Giang Water Plant, with a capacity of 60,000 m³/day.
The booster pump station ensures the stability of the water supply system in the industrial zone.
The fire prevention and firefighting system is certified and complies with approved regulatory procedures.
Central wastewater treatment plant
Total area: 2.36 ha
Wastewater treatment capacity:
Approved plan: 8,000 m³/day
Upgrade plan: 20,000 m³/day
Applied technology: Biological treatment process according to Anoxic – Oxic (AO) sequence
Internal road
The total area dedicated to the internal road system is up to 24.22 hectares, systematically planned and paved to meet industrial load standards.
The network of main roads and auxiliary roads seamlessly optimizes the flow of container trucks, facilitating fast and convenient transportation, with easy connectivity to the Hanoi-Lang Son expressway and National Highway 1A.
Parking area – Centrally planned, large area
The parking area covers up to 3.23 hectares, reasonably allocated along main traffic routes, convenient for both heavy trucks and personal vehicles.
This area ensures good service for staff, employees, and visitors, without affecting internal transportation flow.
Intelligent telecommunications system
Song Mai – Nghia Trung is equipped with a smart telecommunications system, supporting both high-speed fiber optic connections and future 5G infrastructure.
Businesses can easily deploy ERP systems, IoT, surveillance cameras, and digital platforms for production, operation, and management.
